Run your thumb over the top of a ChalkBlaster brush head. Smooth, no ridges. If you've handled many 3D-printed parts you'll know that isn't normal. The reason is a decision that costs us nothing but a bit of support material: we never print the head flat.
What's wrong with printing flat
Almost every FDM part in the world is designed to sit flat on the print bed. It's the default in every slicer, it needs no supports, and it's what everyone is taught. It's also why most printed parts look printed. The top surface shows every layer as a visible stair-step, and the part is weakest exactly along those layers, because each one is only glued to the one below by a thin strip of plastic.
In resin printing, angling parts is standard practice. Nobody prints flat on an SLA machine. In FDM, almost everyone skips it. We did too, until we started looking hard at the ChalkBlaster brush head, the one part of the tool you look at and touch every session.
What happened when we tilted it 30 degrees

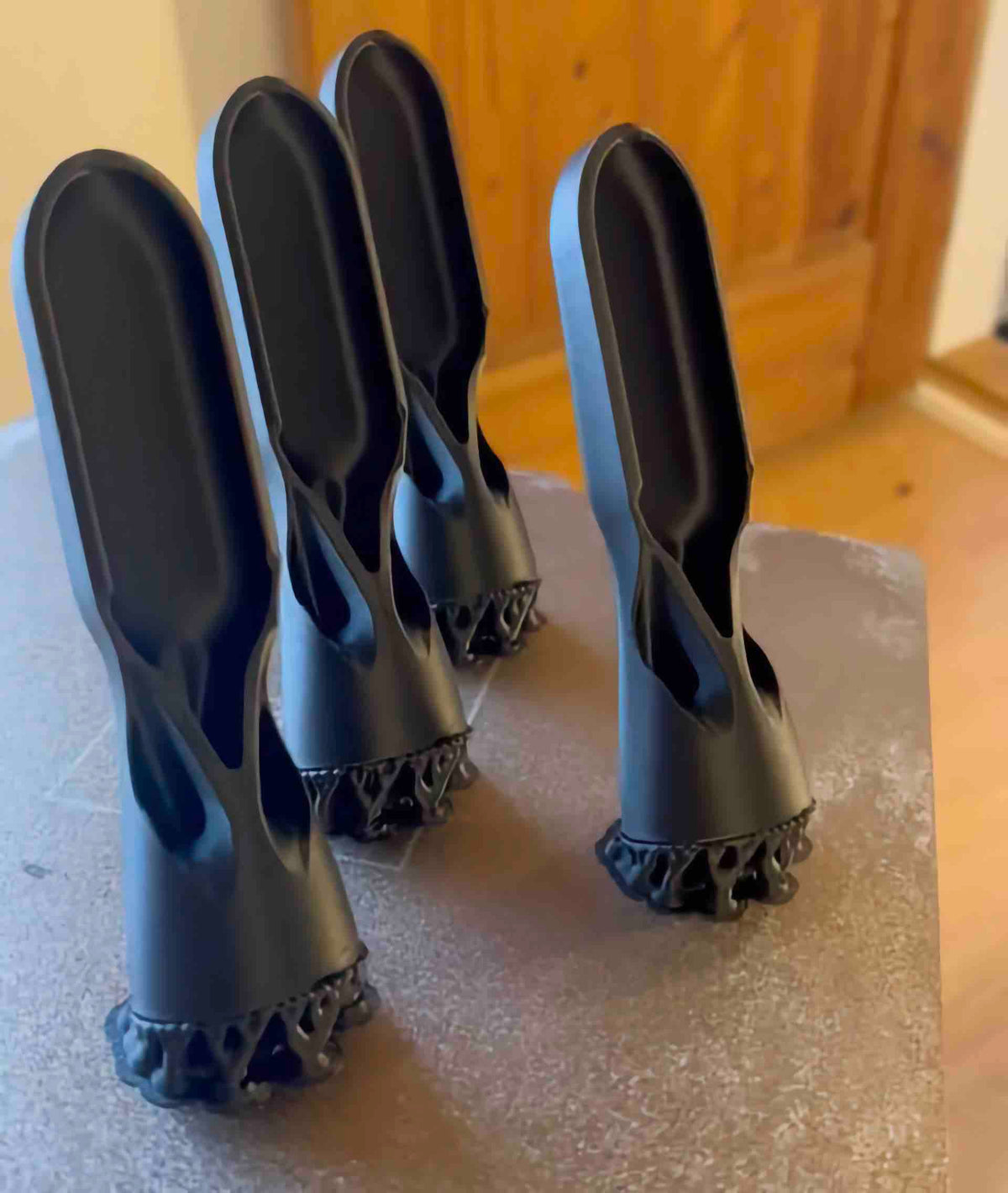

We angled the brush head by 30 degrees on the bed and printed the same part again. The difference was immediate. Visible layer lines on the top surfaces disappeared, because the layers now cross the surface at a shallow angle instead of stacking straight up through it. And because each layer sits on a bigger slice of the one beneath it, the bond between layers got larger, which means a stronger part. More contact area, better layer adhesion, a brush head that shrugs off being dropped on rock.
The catch: supports
Tilt a part and it needs something to hold the overhanging side up while it prints. That's the reason most FDM shops print flat. Supports waste material, take time to remove and can scar the surface where they touch.
With the right settings, none of that holds. On the ChalkBlaster head the supports snap off easily, use very little material, and leave clean contact surfaces because we choose where they touch. The extra minute of cleanup per head buys a part that looks moulded and lasts longer. We'll take that trade on every unit.
Visible stair-step layer lines on top
Thin bond between layers
No supports needed
Looks 3D printed
Smooth top surfaces
Bigger layer contact, stronger part
Light supports, clean removal
Looks and feels moulded
What this means on the wall
Your ChalkBlaster brush head is stronger than a flat-printed one made of the same plastic, so it survives the chalk bag, the crash pad and the occasional fall off a boulder. It also looks like a finished product instead of a prototype, which matters more than it should when you pull it out at the gym. Add the heat treatment we give every printed ChalkBlaster part, covered in this post, and you get a head that's about 20% stronger again on top of the angle.
Two small manufacturing decisions. Zero extra cost to you. A brush that lasts.
Paul: "Most FDM prints are designed to be printed flat. Big mistake. In SLA printing, angling parts is standard practice. But in FDM, everyone skips it."
Quick answers
Is the ChalkBlaster brush head really 3D printed?
Yes. FDM printing lets us iterate the head fast and produce it in batches without paying for a mould, and with the 30-degree tilt and heat treatment it's strong enough for daily use.
Why 30 degrees and not 45?
Thirty was the angle where the top surfaces of the head came out clean and the supports stayed small. Steeper angles need more support and gain little on this shape.
Does the angle affect how the head fits the handle?
No. The fit comes from the insert and the click mechanism. The print angle only changes surface finish and strength.
